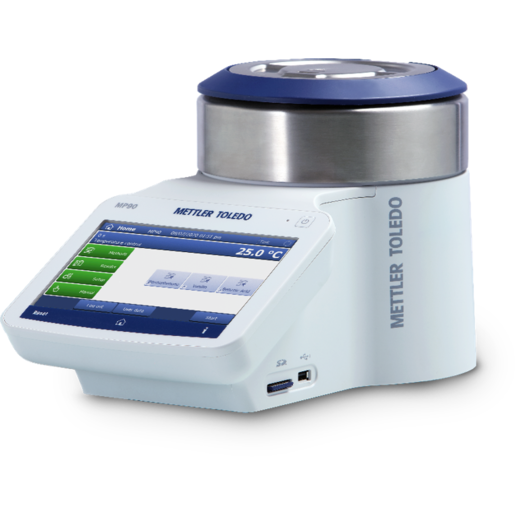

Melting Point Apparatus

A melting point system is an analytical instrument used to determine the melting point of solid crystalline substances. At the melting point, there is a change in light transmission through the sample, which is automatically detected with METTLER TOLEDO Excellence Melting Point Systems. In addition to melting point, the versatile MP80 Excellence Melting Point System offers automatic determination of further physical properties, such as boiling point, cloud point, and slip melting point.

Simple and Versatile.The MP55 is the ideal starter model and offers simultaneous determination of up to 3 melting point/melting range or 2 slip melting point samples up to a maximum temperature of 570°F/300°C.

Simple One Click™ Operation

The One Click™ user interface enables users to start measurements with a single click of the button.

Color video recording

With the high resolution on-screen video, measurements can be observed in real time or conveniently replayed to verify the results.

Trusted performance

The instrument offers automatic detection of melting and slip melting point all in one.

Add to Wishlist
Add to Wishlist

Description

Application Type Melting Point
Slip Melting Point
Min. Number of Melting Point Capillaries 3 Melting Point Capillaries
Min. Cooling Time (Tmax to 50°C) 4 min
Temp. Range RT – 300°C
Number of One Clicks™ 12
Min. Heating Time (50°C to Tmax) 3
Video color, 60 minutes
Data Export to USB Stick
Heating Rate (/min) 0.1 °C – 20 °C
Stored Methods 0
Number of Capillaries/Cups 2 Slip Melting Point Capillaries
3 Melting Point Capillaries
PDF Reports Yes
Stored Results 10
Substances in database 0
User Management Multiple Users
Languages English, Chinese, German, Spanish, French, Italian, Portuguese, Russian, Japanese, Korean
Display / User interface 7″ color display with touchscreen
PC Software No
Dimensions (Width x Height x Depth) 18 x 35 x 19 cm
Weight 4 kg
