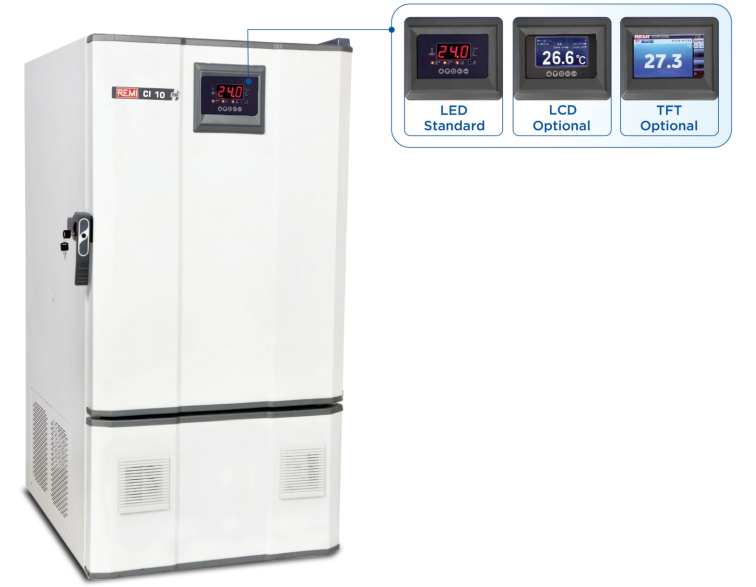

Cooling Incubator

Cooling Incubators are designed for applications in pharmaceutical, microbiology, biotechnology, chemical & research labs. These chambers are used for BOD test culture of bacteria, microorganism, tissue culture, incubation, immunological work & storage of vaccines etc.

Salient Features

• Temperature range 5°C to 60°C
• Unique design of thermal barrier for better energy efficiency
• Machine filled CFC free PUF insulation to eliminate void pockets
• Powerful fan motor for forced air circulation to maintain uniform conditions inside chamber
• Heating by long life SS tubular heaters
• Chamber calibration port on side
• Adjustable trays
• Hermetically sealed Compressor with CFC free refrigerant
• High temperature safety cut off & alarms for high / low set parameters
• Sensor failure alarm
• Electrical circuit breaker
• Time delay for compressor switch on
• Overload cut off relay for compressor
• Rounded inner chamber for easy cleaning
• Attractive door profile
• Microprocessor controller with LED display of Temperature with set, process value & audio visual alarm (standard)
• Weight carrying capacity of each tray: 15 Kg uniformly distributed.
• Auto door closer.
• Smart Handle with LED door closure indication.
• Optional
  • 4″ LCD display with additional features (Details overleaf)
  • Touch screen display ( TFT ) with additional features(Details overleaf)
  • Validation protocol with IQ, OQ, PQ Documentation
  • Port for calibration probes / safety back up
